COMFORTABLE TRANSPORT
CASUAL COMMUTER
BIKE PATH SUNDAY DRIVER

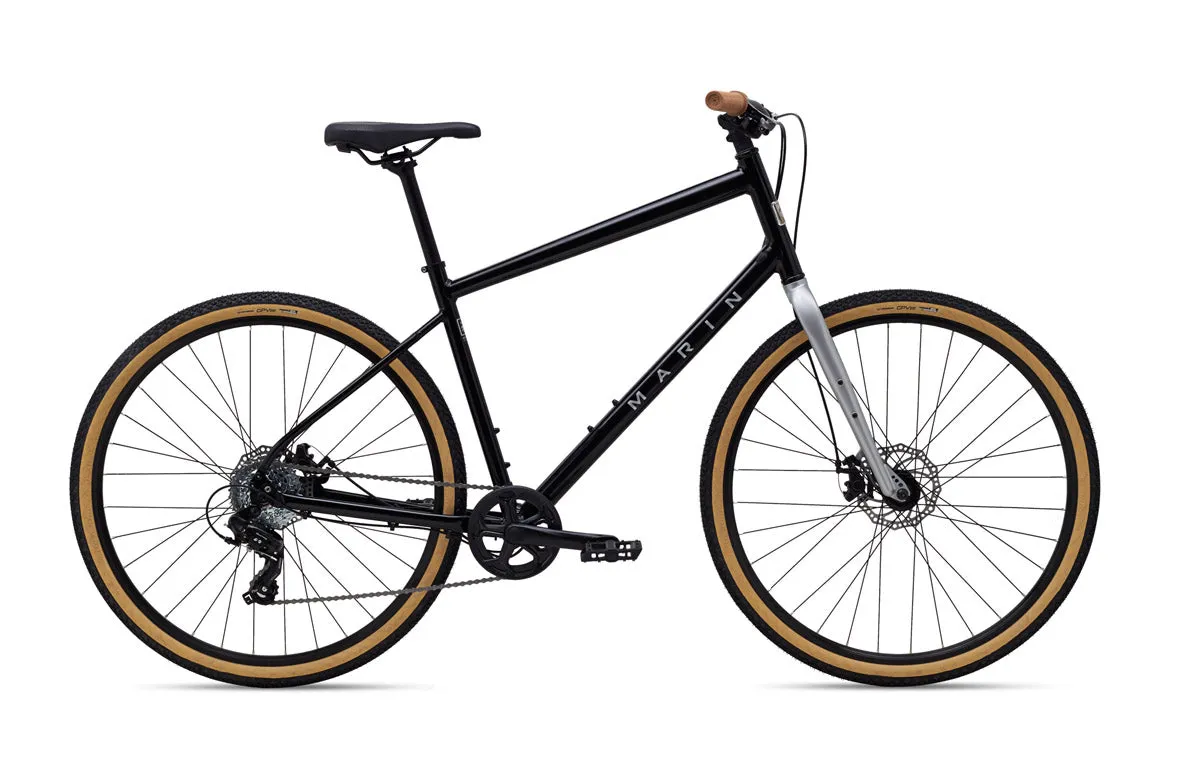

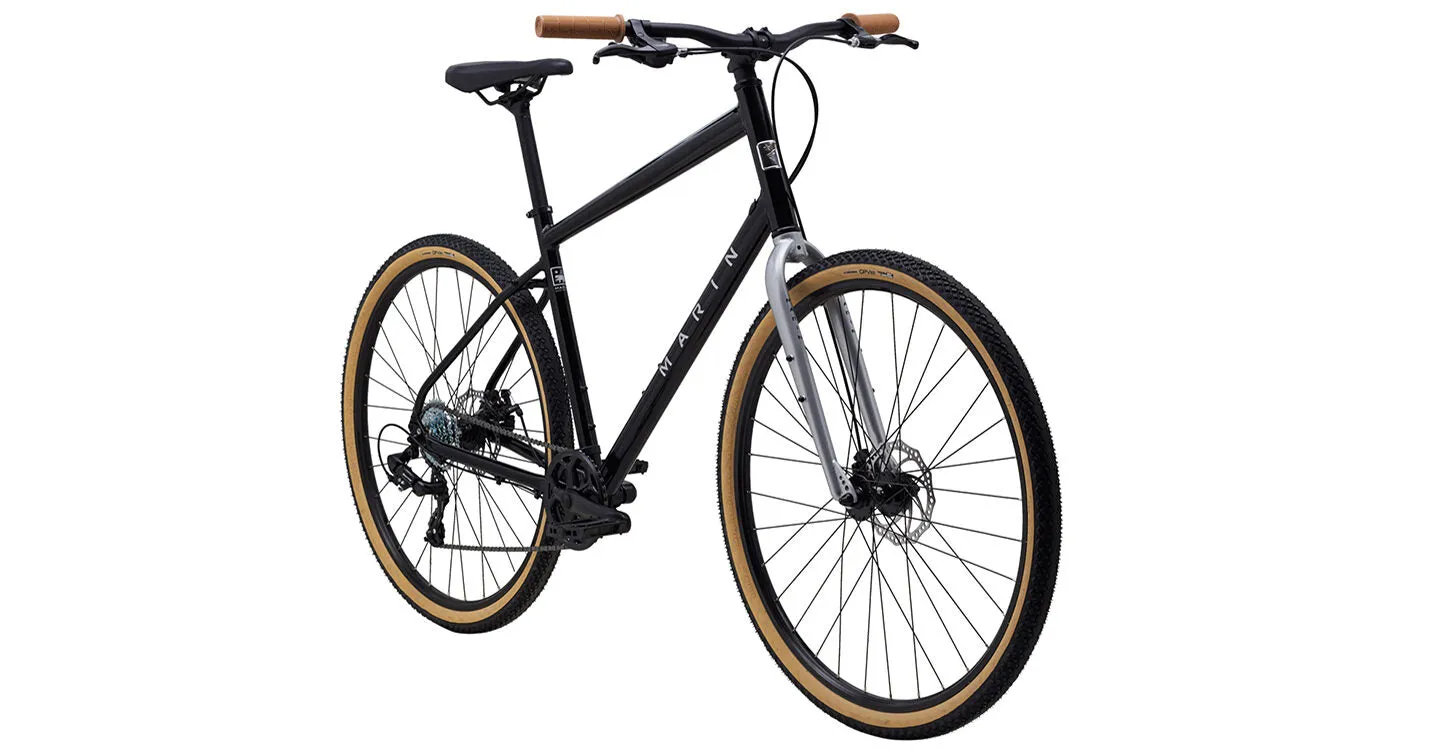

The Kentfield 1 is our most-affordable Kentfield. Designed to be affordable, comfortable and reliable it’ll go the distance, every day of the week.
Our Series 1 aluminum frame is lightweight and responsive, and comes decked out with plenty of rack and fender mounts to suit your setup. There’s a Shimano 7-speed drivetrain, Vee Tire tires, Clark’s mechanical disc brakes and plenty of reliable Marin components.
The Kentfield 1 is also available in a step-through version.
Please note - specifications & price subject to change without prior notice.
| 01. FRAME | Series 1 City Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts |
| 02. SIZES | Small, Medium, Large, Extra Large |
| 03. FORK | Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets |
| 04. GEARS | 1 x 7 |
| 05. CRANKSET | Forged Alloy Crank |
| 06. CRANK LENGTH | - |
| 07. BOTTOM BRACKET | Sealed Cartridge Bearings, Square Taper |
| 08. CASSETTE | SunRace 7-Speed, 11-34T |
| 09. CHAIN | KMC Z-8.3 |
| 10. CHAINGUARD | - |
| 11. FRONT DERAILLEUR | - |
| 12. REAR DERAILLEUR | Shimano Tourney 7-Speed |
| 13. SHIFTER-FRONT | - |
| 14. SHIFTER-REAR | Shimano Altus 7-Speed RapidFire |
| 15. BRAKES | Aluminum Lever |
| 16. ROTOR-FRONT | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| 17. ROTOR-REAR | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| 18. HANDLEBAR | Marin Alloy, 30mm Rise, 12? Backsweep |
| 19. STEM | Marin Aluminum, |
| 20. STEM LENGTH | 31.8mm Clamp |
| 21. HEAD SET | FSA 888 Threadless |
| 22. SEAT POST | Marin Alloy, 27.2mm |
| 23. SADDLE | Marin Adventure Plush |
| 24. HUB-FRONT | Forged Aluminum Alloy, 32H |
| 25. HUB-REAR | Forged Aluminum Alloy, 32H |
| 26. AXLE-REAR | - |
| 27. SPOKES | 14g Stainless Steel |
| 28. RIMS | Marin Aluminum Double Wall, Disc Specific |
| 29. TYRES | Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready |
| 30. PEDALS | Commute Platform |
